ESD Anti Static Label Material 1Mil Gloss White Strong Adhesive Polyimide Materials With Glassine
| Place of Origin | China |
|---|---|
| Brand Name | PANLARN |
| Certification | SGS |
| Model Number | PL8520-2L-A26 |
| Minimum Order Quantity | 200 square meter |
| Price | $10~12 per square meter |
| Packaging Details | Roll |
| Delivery Time | 7-15days |
| Payment Terms | T/T,Paypal,west union,Alipay |
| Supply Ability | 10000 square meter/1 week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Type | Polyimide | Adhesive | Permanent Adhesive |
|---|---|---|---|
| Surface | Gloss | Color | White |
| Shape | Roll | Film | Polyimide Film |
| Highlight | ESD Anti Static Label Material,50um Anti Static Label Material,15um floor sticker material |
||
Product Description

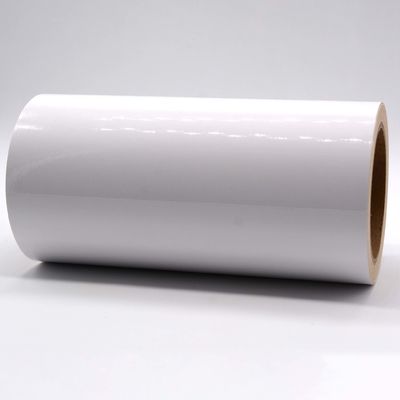

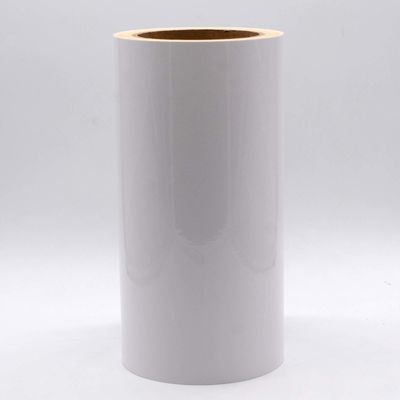

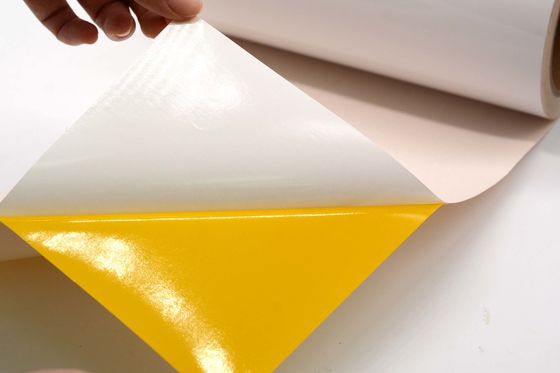

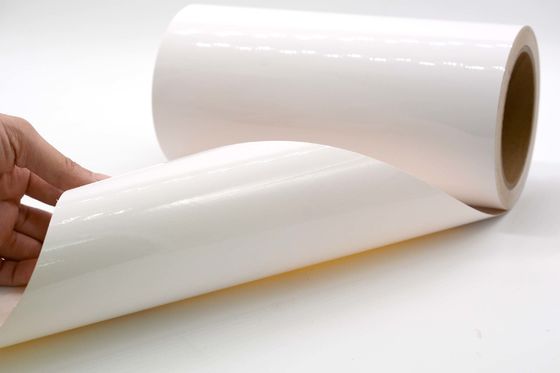

1Mil Gloss White Strong Adhesive Polyimide Materials With Glassine
Product Description:
PL8520-2L is a polyimide based label with a permanent acrylic pressure sensitive adhesive for thermal transfer on a white coated surface, designed for use on printed circuit boards or related electronic components for character or Logo and bar code labels. It is the ideal material for wave soldering or reflow soldering during circuit boards and SMT, DIP to ensure excellent performance in a wide range of extremely harsh application environments.
Product Feature :
| Title | Description |
|---|---|
| Adhesive | Strong adhesive |
| Color | White |
| Shape | Roll |
| Face stock: | |
| Coating |
White gloss finish 15um |
| Base material type | Polyimide PI film |
| Base material thickness | 25um+-2 |
| Liner: | |
| Liner type |
Glassine |
| Gram weight | 90g |
| Thickness | 75um+-5% |
| Adhesive | |
| Adehesive type |
Permanent adhesive |
| Thickness | 25um+-1% |
|
Release force |
0.9-1.1kgf |
| Rest standard | GB/T 2792 |
| Minimum application temperature |
5-10℃ |
| Service temperature range | -40℃~300℃ |
Applications:
- PCB board processing bar code management
- Electronic chip identification
- Electronic component identification
- Component tracking bar codes
Packing and Shipping:
- By EMS,DHLFedEx,TNT,UPS or other express
- By your forwarding agent
- Domestic freight forwarders to any city in China
- By Sheet/Roll
