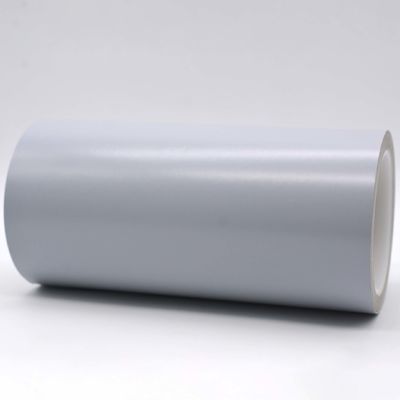

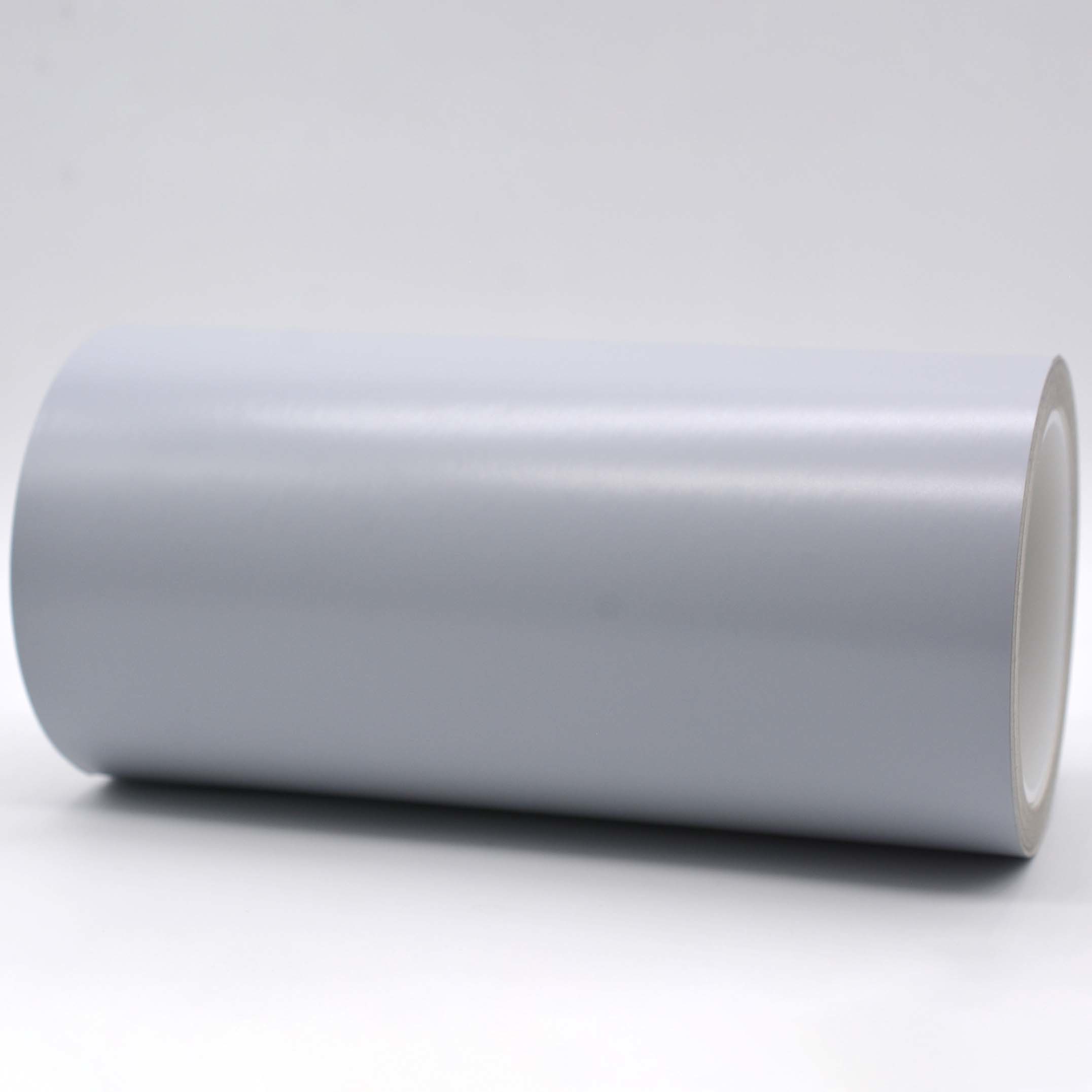

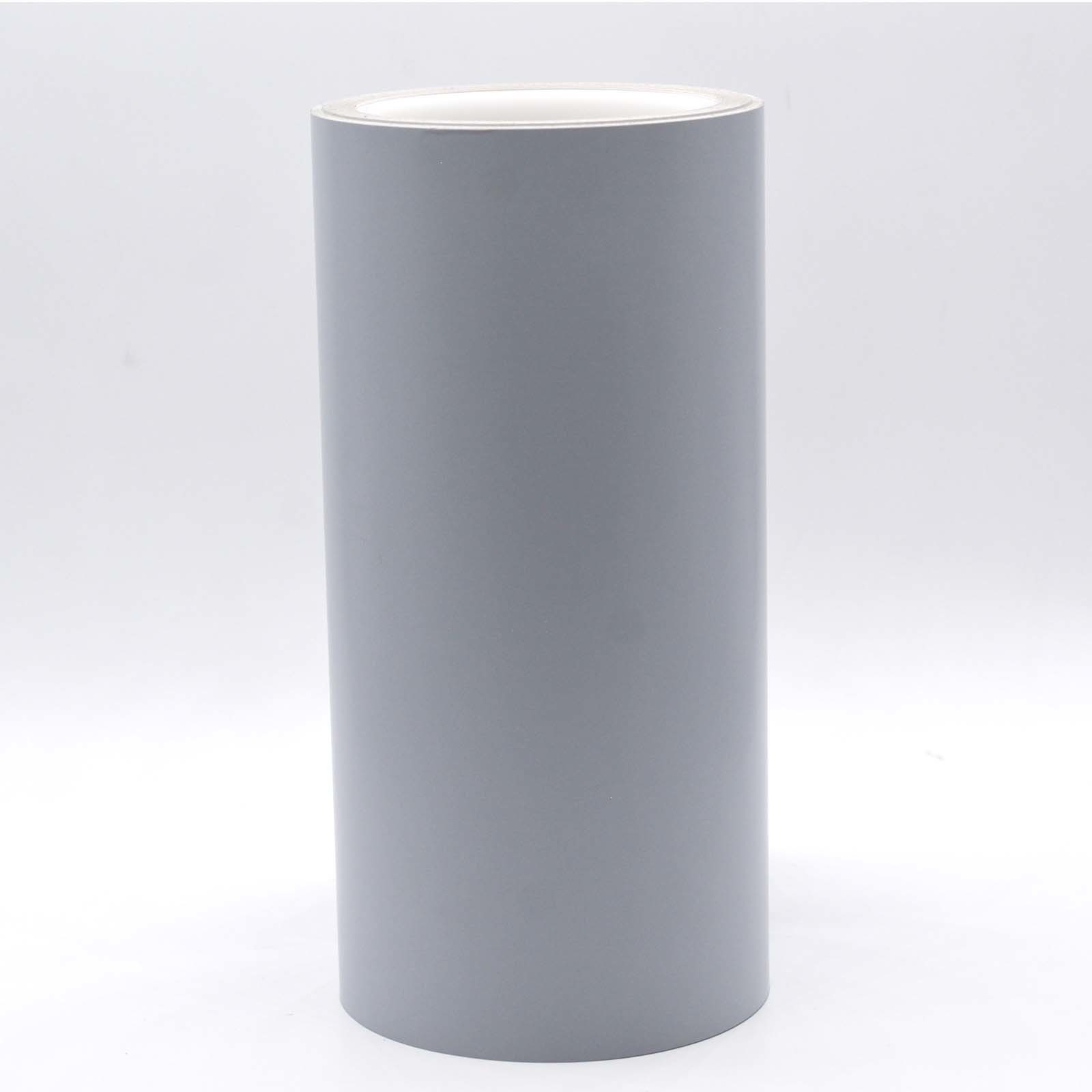

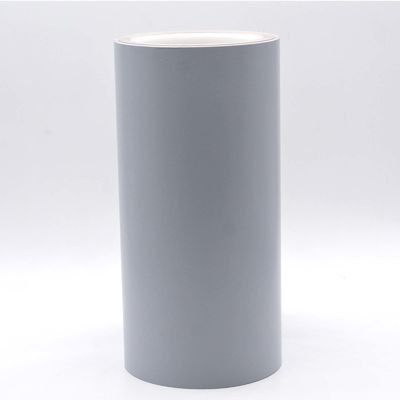

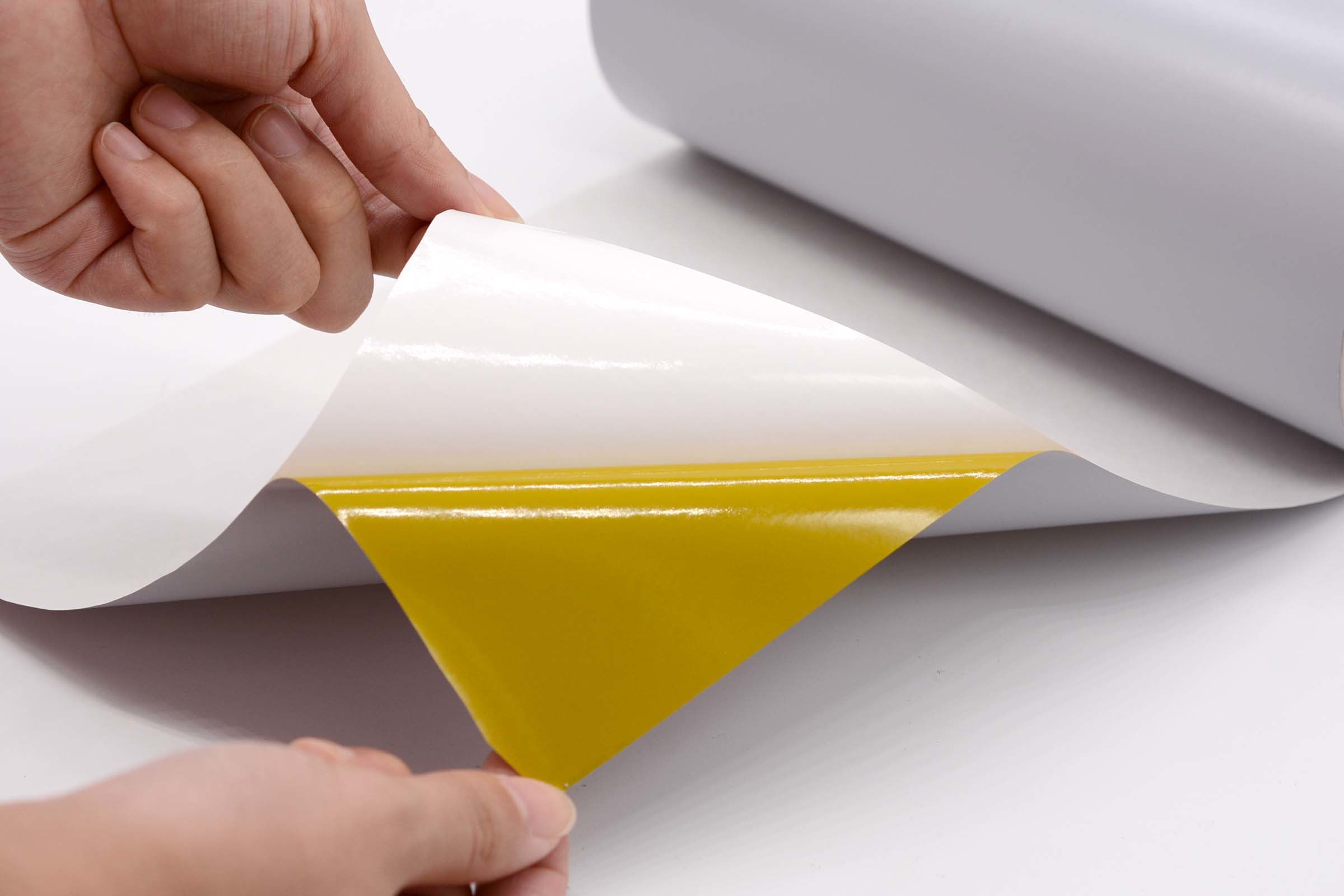

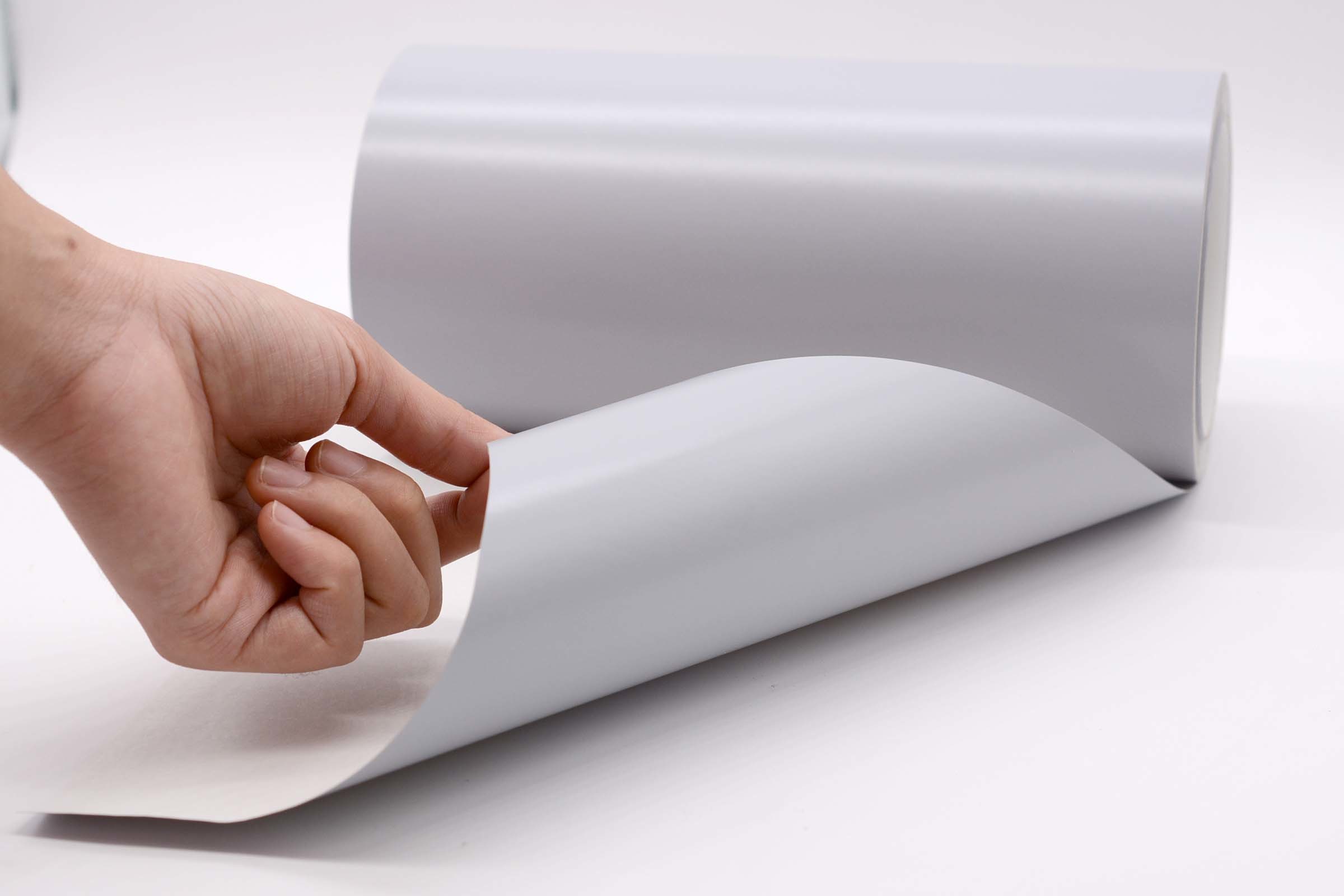

Matte Gray Anti Static Label Material 1 Mil Permanent Adhesive Polyimide With Glassine
| Place of Origin | China |
|---|---|
| Brand Name | PANLARN |
| Certification | SGS |
| Model Number | PL8520-2W-GR |
| Minimum Order Quantity | 200 square meter |
| Price | $10~12 per square meter |
| Packaging Details | Roll |
| Delivery Time | 7-15days |
| Payment Terms | T/T,Paypal,west union,Alipay |
| Supply Ability | 10000square meter/1 week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Polyimide | Adhesive TYPE | Permanent Adhesive |
|---|---|---|---|
| Surface | Matte | Colour | Gray |
| Packaging | Roll | Film | Polyimide Film |
| Highlight | 1 mil Anti Static Label Material,Anti Static Label Material matte grey,polyimide self adhesive label material |
||
Product Description
1Mil Matte Gray Permanent Adhesive Polyimide Materials With Glassine
Product Description:
PL8520-2w is a polyimide substrate and is a durable pressure-sensitive acrylic adhesive, suitable for thermal transfer printing of flat white surfaces of coated labels and is designed for printed circuit boards or related electronic components used in the design of character labels or logos and barcodes. It guarantees all kinds of extremely harsh application environments to maintain excellence in the performance of the ideal material in PCB and SMT, wave or DIP during reflow.
Product Feature :
| Title | Description |
|---|---|
| Adhesive | Permanent adhesive |
| Color | Gray |
| Shape | Roll |
| Face stock: | |
| Coating |
Gray matte finish 15um |
| Base material type | Polyimide PI film |
| Base material thickness | 25um+-2 |
| Liner: | |
| Liner type |
Glassine |
| Gram weight | 90g |
| Thickness | 75um+-5% |
| Adhesive | |
| Adehesive type |
Permanent adhesive |
| Thickness | 25um+-1% |
|
Release force |
0.9-1.1kgf |
| Rest standard | GB/T 2792 |
| Minimum application temperature |
5-10℃ |
| Service temperature range | -40℃~300℃ |
Applications:
- PCB board processing bar code management
- Component tracking bar code
- Electronic chip identification
- Printed circuit board label
Packing and Shipping:
- By EMS,DHLFedEx,TNT,UPS or other express
- Domestic freight forwarders to any city in China
- By your forwarding agent
