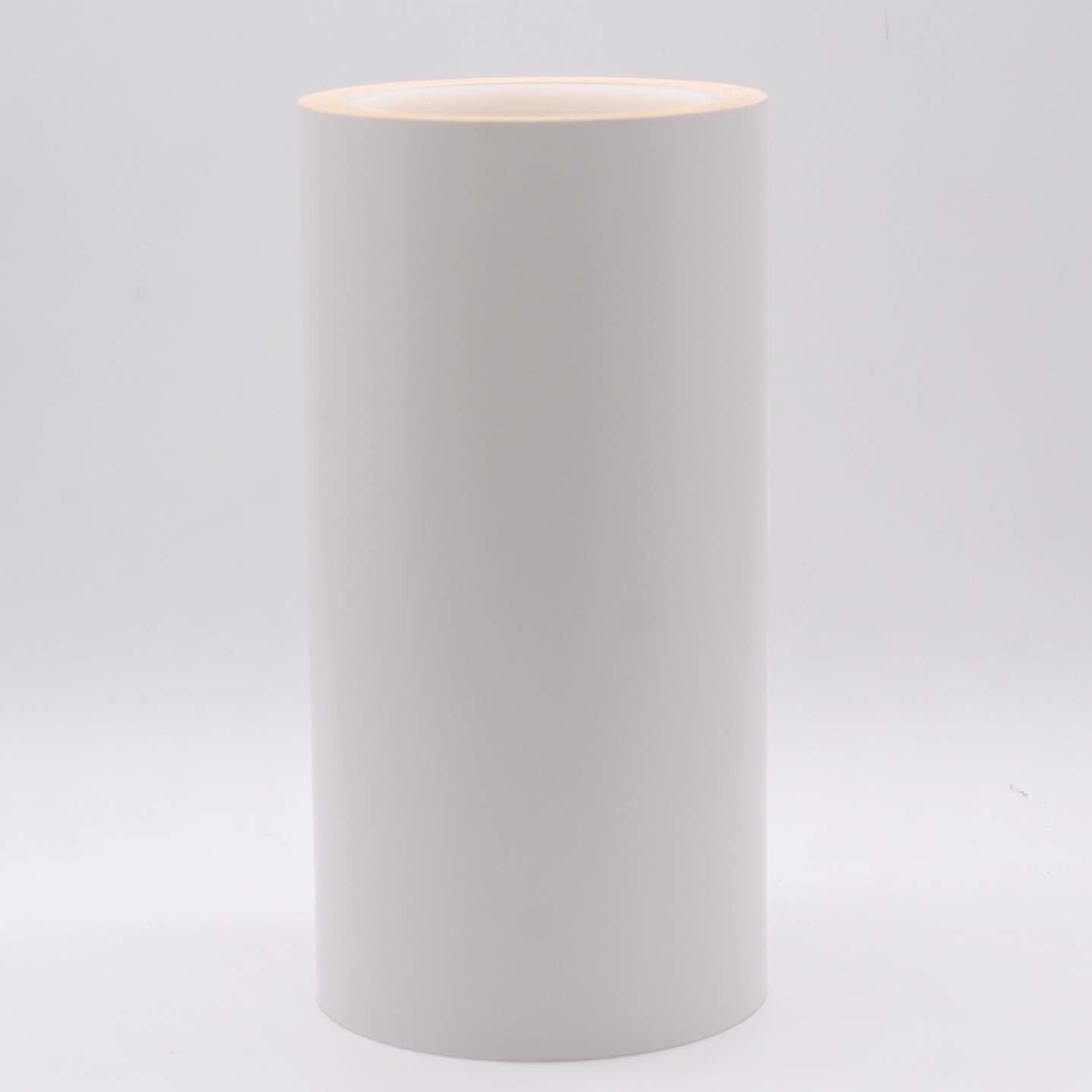

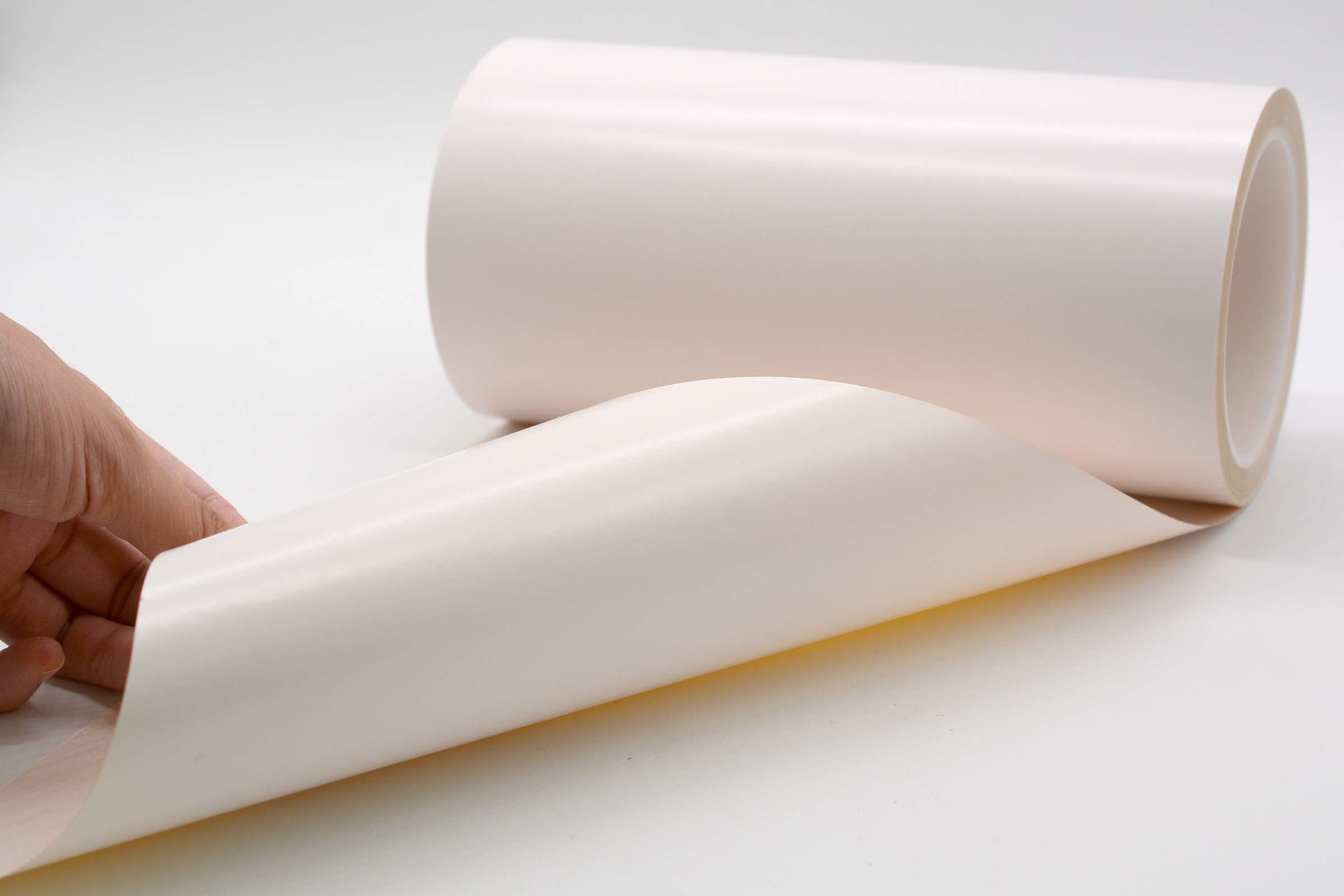

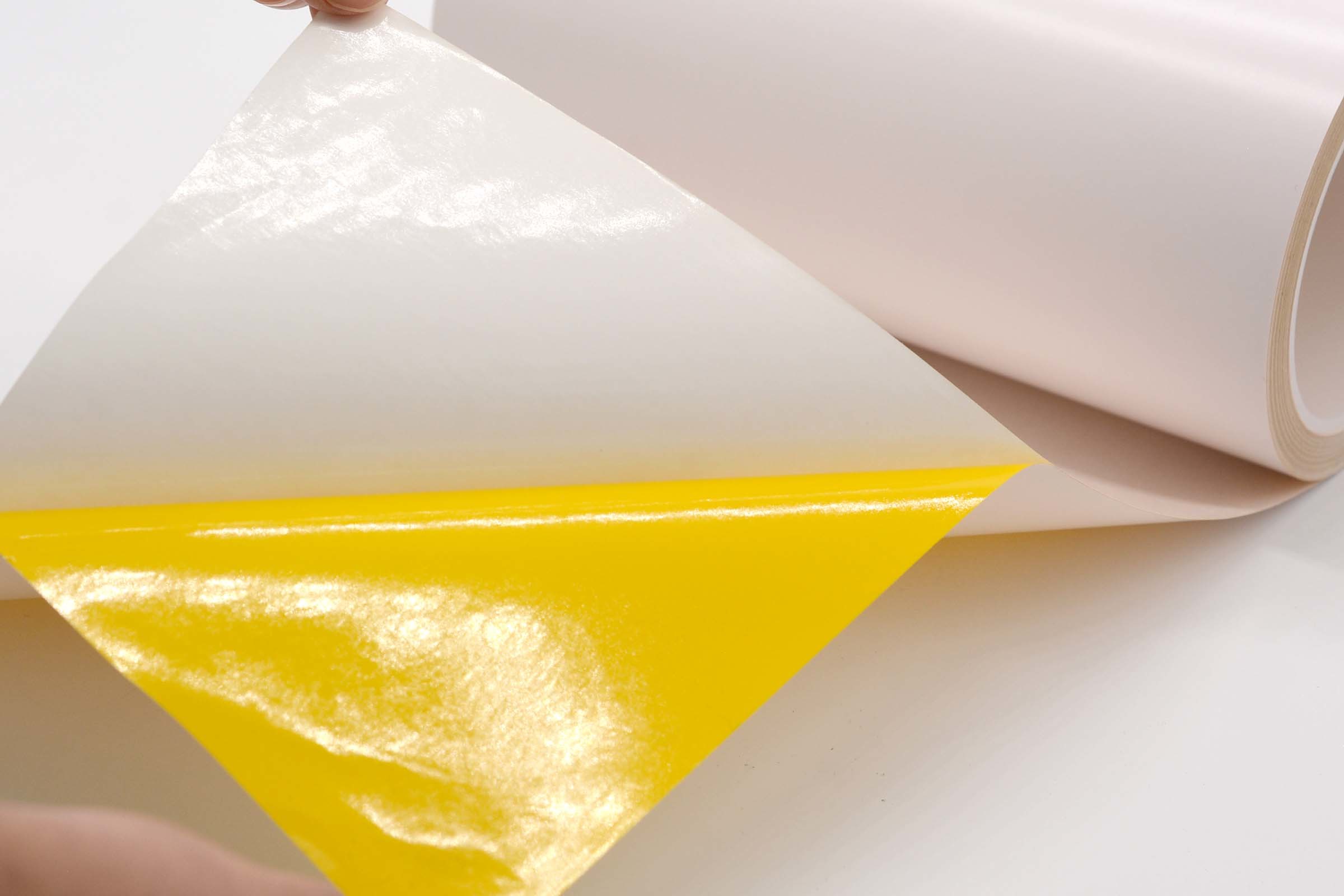

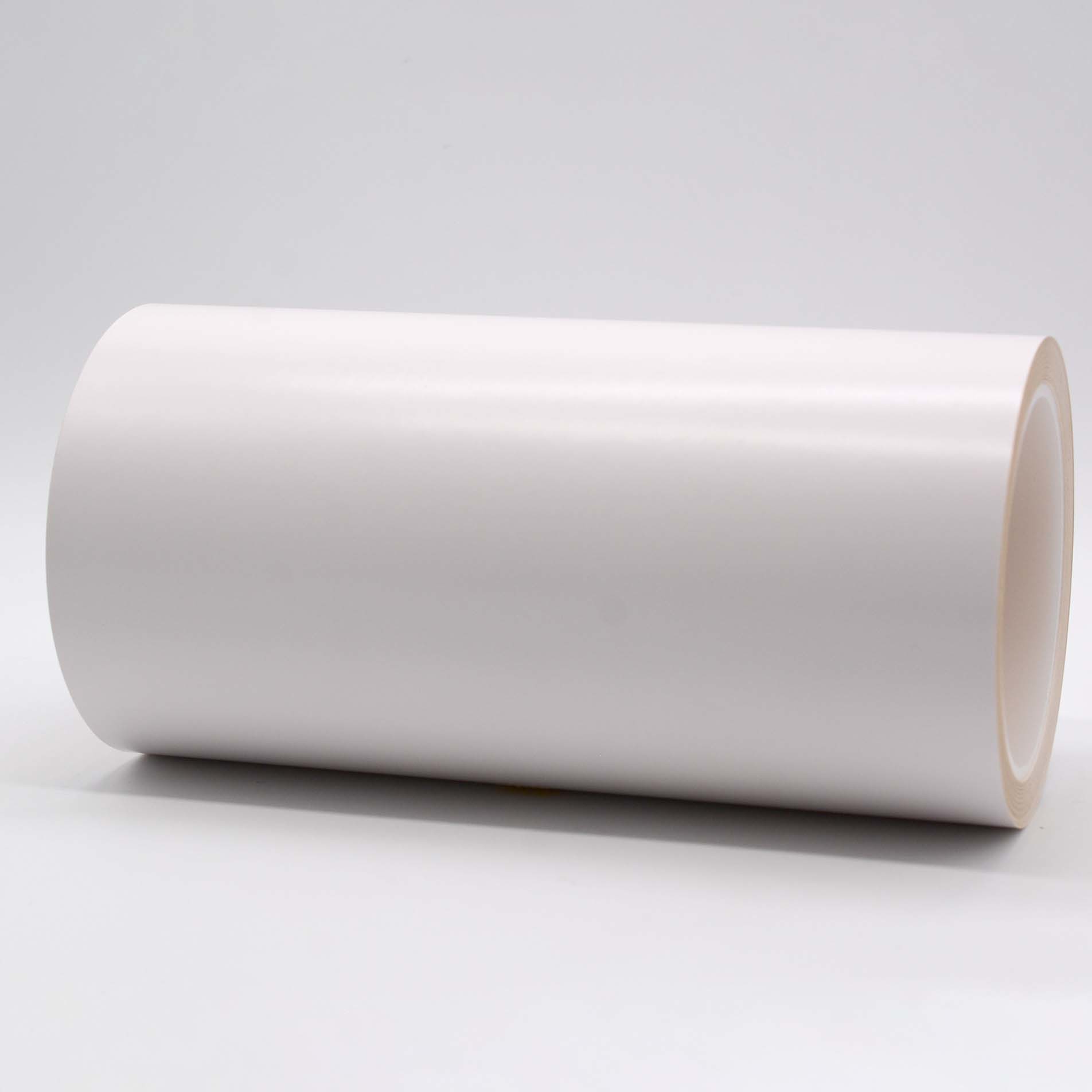

1Mil Matte White Permanent Adhesive Polyimide Materials With Glassine
| Place of Origin | China |
|---|---|
| Brand Name | PANLARN |
| Certification | SGS |
| Model Number | PL8520-2W |
| Minimum Order Quantity | 200 square meter |
| Price | $10~12 per square meter |
| Packaging Details | Roll |
| Delivery Time | 7-15days |
| Payment Terms | T/T,Paypal,west union,Alipay |
| Supply Ability | 10000 square meter/1 week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Type | Polyimide | Adhesive | Permanent Adhesive |
|---|---|---|---|
| Finish | Matte | Colour | White |
| Film | Polyimide Film | Liner | Glassine |
| Highlight | glassine material name tags,polyimide material name labels,1mil material name labels |
||
Product Description
1Mil Gloss White Permanent Adhesive Polyimide Materials With Glassine
Product Description:
PL8520-2W is a substrate for a polyimide, with a permanent acrylic pressure-sensitive adhesive, suitable for thermal transfer printing of the matte white-coated surface of the label, is designed for printed circuit boards or related electronic components used on the characters or Logo and barcode label design. It is in circuit boards and SMT, DIP during wave solder or reflow to ensure that all kinds of extreme harsh application environment to maintain excellence in the performance of an ideal material.
Product Feature :
| Title | Description |
|---|---|
| Adhesive | Permanent Adhesive |
| Color | White |
| Shape | Roll |
| Face stock: | |
| Coating |
White matte finish 15um |
| Base material type | Polyimide PI film |
| Thickness | 25um+-2 |
| Liner: | |
| Liner type |
Glassine |
| Gram weight | 90g |
| Thickness | 75um+-5% |
| Adhesive | |
| Adehesive type |
Permanent Adhesive |
| Thickness | 25um+-1% |
|
Release force |
0.7-0.9kgf |
| Rest standard | GB/T 2792 |
| Minimum application temperature |
5-10℃ |
| Service temperature range | -40℃~300℃ |
Applications:
• Printed circuit board labels and shielding
• Compliance information
• Cable and wire labels
• Electronic chip identification
Packing and Shipping:
- By EMS,DHLFedEx,TNT,UPS or other express
- By your forwarding agent
- By land,sea,air
- Domestic freight forwarders to any city in China
