Matte Blue 1Mil Permanent Adhesive Polyimide Materials With Glassine
| Place of Origin | China |
|---|---|
| Brand Name | PANLARN |
| Certification | SGS |
| Model Number | PL8520-2W-C |
| Minimum Order Quantity | 200 square meter |
| Price | $10~12 per square meter |
| Packaging Details | Roll |
| Delivery Time | 7-15days |
| Payment Terms | T/T,Paypal,west union,Alipay |
| Supply Ability | 10000square meter/1 week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Type | Polyimide | Adhesive | Permanent Adhesive |
|---|---|---|---|
| Surface | Matte | Colour | Blue |
| Shape | Roll | Film | Polyimide Film |
| Highlight | 1mil thermal transfer label material,matte blue thermal transfer label material,glassine product label materials |
||
Product Description

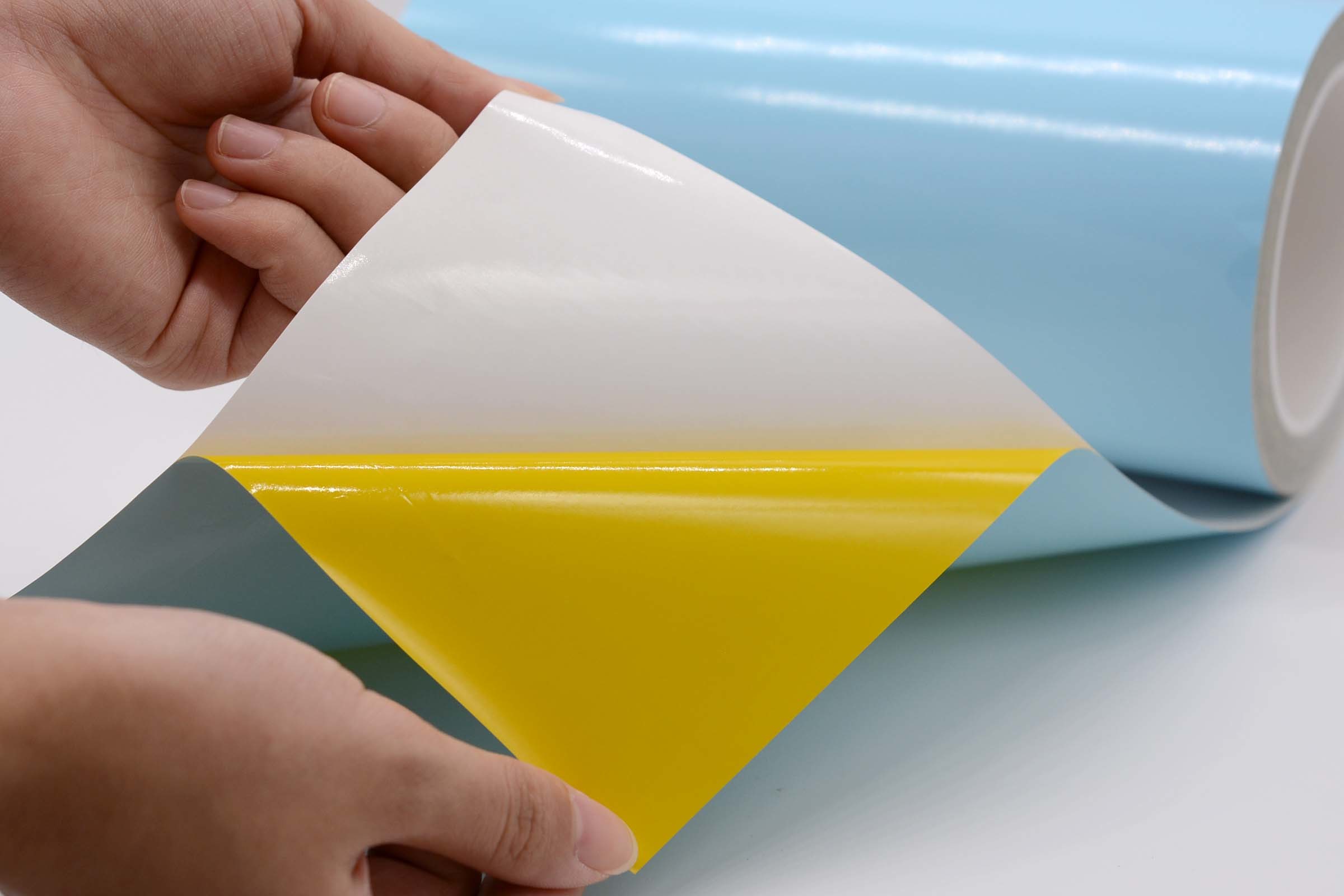

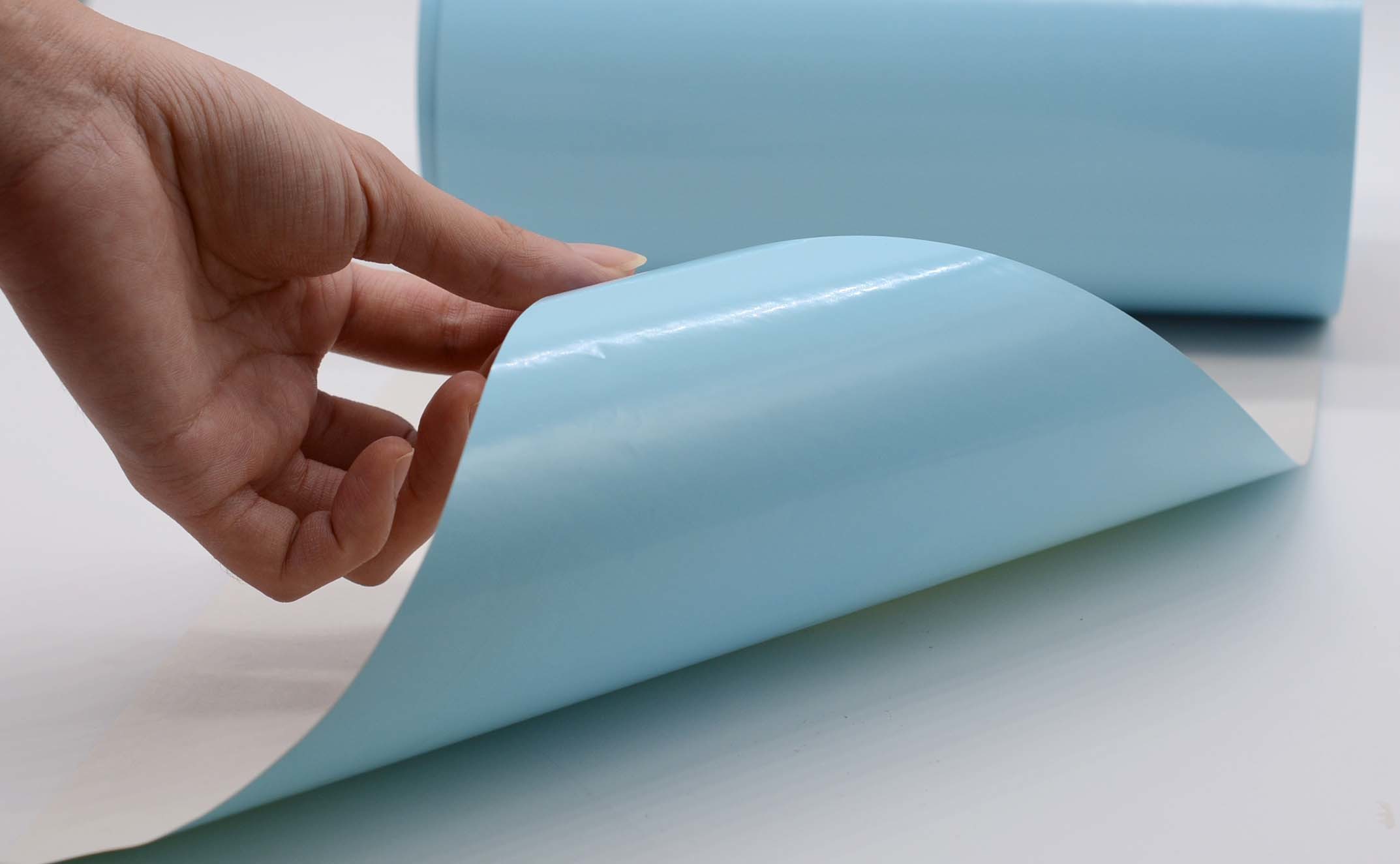

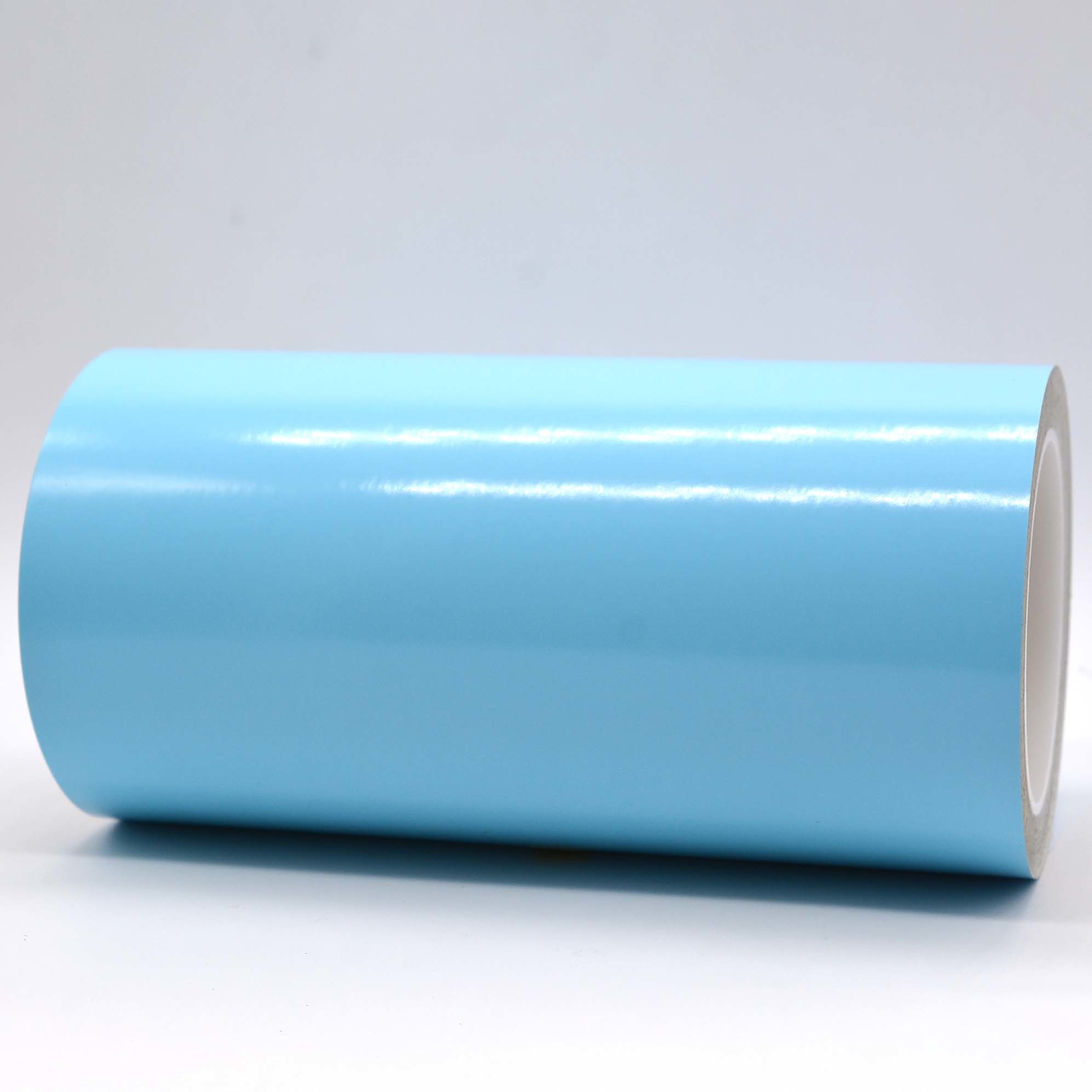

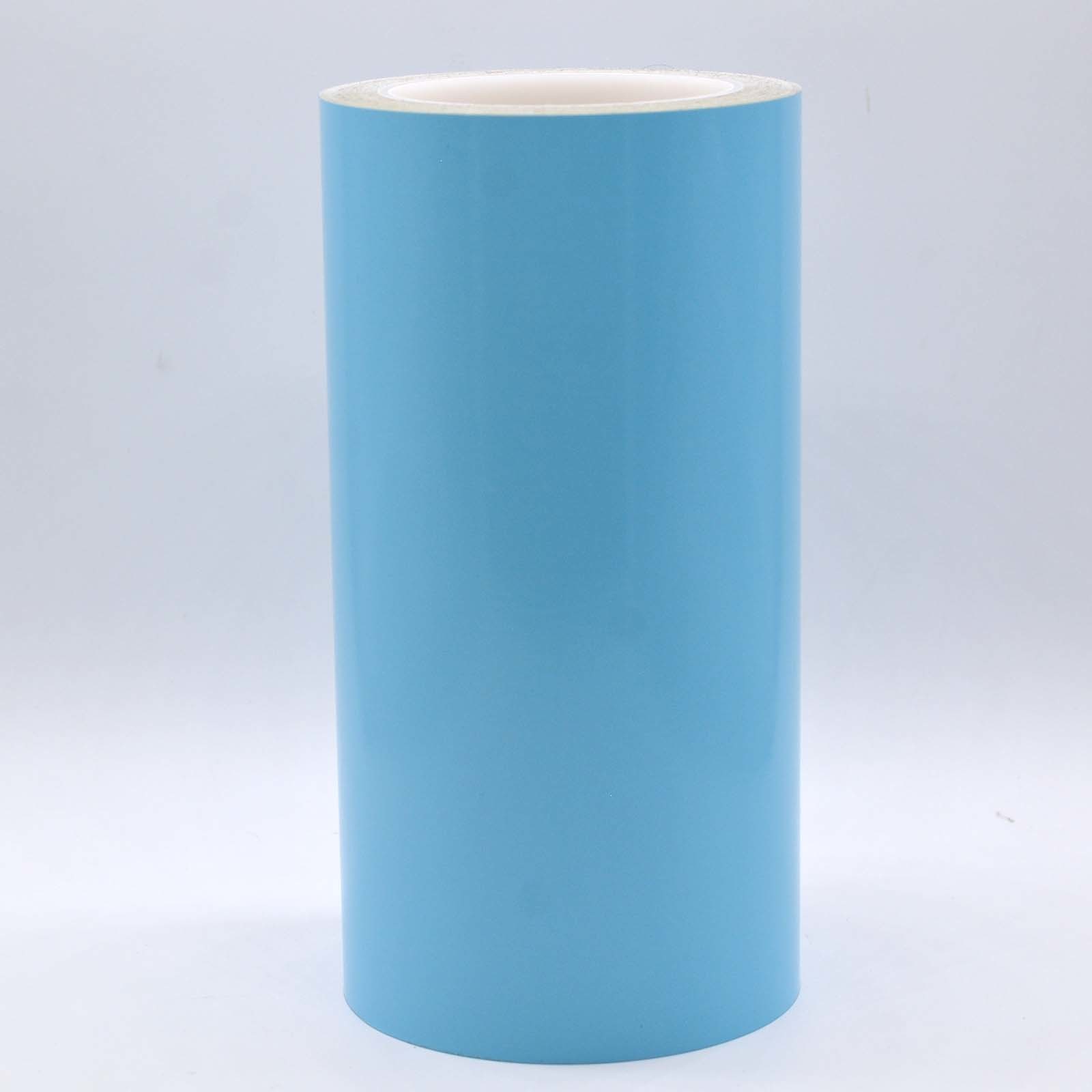

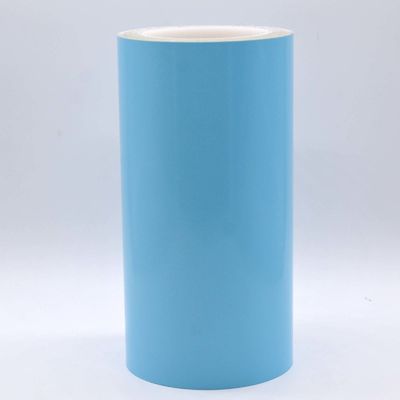

1Mil Matte Blue Permanent Adhesive Polyimide Materials With Glassine
Product Description:
PL8520-2W is a substrate for polyimide, with a pressure sensitive permanent acrylic adhesive, suitable for heat transfer printing of the matt white coated surface of the label, is designed for printed circuit boards or related electronic components used on print or Logo and bar code label design. It is in printed circuit boards and SMT, dip during wave soldering or reflux to ensure all kinds of extreme severe application environment to maintain excellence in the performance of an ideal material.
Product Feature :
| Title | Description |
|---|---|
| Adhesive | Permanent adhesive |
| Color | Blue |
| Shape | Roll |
| Face stock: | |
| Coating |
White matte finish 15um |
| Polyimide PI film | |
| Thickness | 25um+-2 |
| Liner: | |
| Liner | Glassine |
| Gram weight | 90g |
| Thickness | 75um+-5% |
| Adhesive | |
| Adehesive type |
Permanent adhesive |
| Thickness | 25um+-1% |
|
Release force |
0.7-0.9kgf |
| Rest standard | GB/T 2792 |
| Minimum application temperature |
5-10℃ |
| Service temperature range | -40℃~300℃ |
Applications:
- PCB board processing bar code management
- Electronic component identification
- Compliance information
- Component tracking bar code
Packing and Shipping:
- By EMS,DHLFedEx,TNT,UPS or other express
- Domestic freight forwarders to any city in China
- By your forwarding agent
